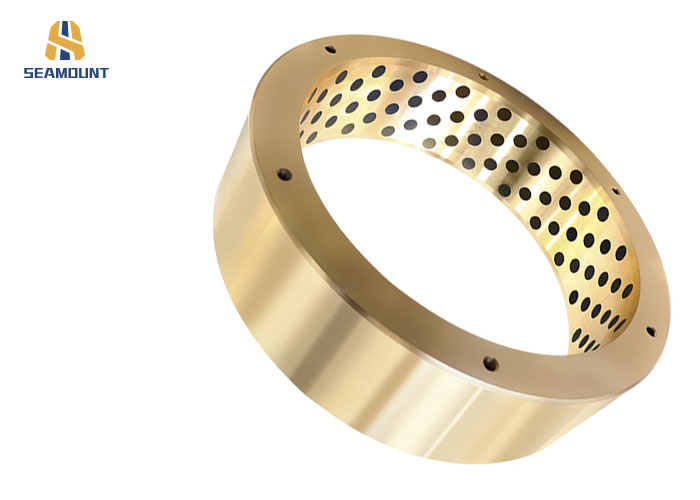

Metal Cylinder Rod Self Lubricating Graphite Bronze Bushing

Product Categories
Xinxiang Haishan Machinery Co., Ltd.
Contact Now

Metal Cylinder Rod Self Lubricating Graphite Bronze Bushing

  • 1
  • 2

Brand Name : SEAMOUNT

Model Number : OEM

Certification : ISO , CE

Place of Origin : China

MOQ : 1 piece

Price : USD 10-15/kg

Payment Terms : T/T, Western Union

Supply Ability : 50000KG per month

Delivery Time : 5-30 work days

Packaging Details : Standard export wooden case

Product name : brass sleeve bushing

Surface treatment : Plating/ Anodizing/ Polishing/Phosphate/ Blackened

Size : Customized

Application : Mechanical Equipment,3D printer,Auto parts

Bushings types : oiless flanged bushings,Solid bearing bushings

Material : copper alloy

Standard : Standard,Non-standard

Feature : High load capacity Good anti-wearing

Quality Assurance : 2D Projector , Height Gague, Micrometer , Roughness Tester, CCD Autimatic Testing Machine CCD, Calipers

Contact Now

China metal cylinder rod self lubricating bush graphite bronze bearing bushing
Casting favorable price lead copper gasket
material:

tin bronze, aluminum bronze, aluminum brass, high-lead

bronze, etc.

Feature

1. High load capacity Good anti-wearing

2. Low coefficients of friction

3. High corrosion resistence

4. Long life and maintenance-free

5. No contaminant by oil or grease

6. ISO9000, CE certification
OEMserivce: YES
Price
payment:

A.L/C( (high bank charge, not suggest , but acceptable )

B.T/ out eccentric bush T( 30% deposit , 70% before shippment)

C.100% Western Union in advance. (specially forairshipment

or small amount)
Port: QINGDAO TIANJIN SHANGHAI NINGBO
MOQ: 10kg
Sample: available

Manufacturer Warranty Detail

 100% Satisfaction Guarantee! If for ANY reason you are not satisfied with this item, you may return it within 90 days for a full refund or replacement.

Metal Cylinder Rod Self Lubricating Graphite Bronze Bushing

Specification:

Specification:
MATERIAL Bronze;Fe-Cu; MPIF standard F-0000-K23 ; FC-0200 ; FG-0303 SERIES
WORKING TEMPERATURE: -40ºC ~ +200ºC
DENSITY & GRAVITY: 6.4-7.3g/cm3
OIL IMPREGNATION RATE: 15% - 23%
GRAPHITE CONTENT RATE: 1% - 3%Max
SLIDING SPEED: 6.0 [m/s]
LOAD CAPACITY STATIC: 10 N/mm2
MAXIMUM PV VALUE: 1.6 N/mm2•m/s
LOAD CAPACITY DYNAMIC: 5 N/mm2
WORKING SPEED: 2.5 m/s
TYPE OF SHAPE: Cyclinder ; Flange ;Spherecial (with Ring)
FOR LOAD DIRECTION: Radial , Thrust, Combined Radial and Thrust
YIELD STRENGTH: 15000 PSI
SHAFT MOUNT TYPE: Press Fit

Related Products

Metal Cylinder Rod Self Lubricating Graphite Bronze Bushing

Packing&Shopping

Export packing in wooden case:

1. Plastic bags wrapped

2. Bubble paper / Pearl cotton wrapped

3. Durable wooden carton / box

4. Foam plate in the bottom

Shippment :

Logistics like by Air, By Sea,By land,By exprese

We have more than ten years of exporting experience;

We have a long term run partner in importing , customs declaration line;

We can choose the best and economy transport way for you

FAQ

Why should i choose you?

A. Passion--- With a young and vibrant team can keen eye to focus on your needs

B. Professional --- With advanced casting technology,sand casting /centrifugal casting /metel casting to meet different client's product requirpment

C. Patiently---- All the custom machined bushings can be produced by the drawings,sketchers, also we provide drawing design based on the request
How do you control the quality? We have a series of testing equipment such as Chemical Composition Analyser,Hardness tester,DYE Penetration Inspection,Ultrasonic Testing,
Also we support the quality test by the 3rd Party like SGS
How long is the lifetime of these bushings? Normaly 3-5 years according to the diffirent working environment.With gentle care they can help your machine output more
Can you give me a discount? We believe quality equal the price. As we all know the larger quantity orders, the more discount.
How about your after-sale service and the problmes repsonse speed ? We are responsible for every sold product.If there any problems please take pictures and count the quantities,will feedback solutions and PAR Preventive Action Report to you within 12 hours.
What about the payment terms?

We'd like to hear customers' opinion, Normally payment terms as below

A. 50% T/T in advance the balance before ship
B. 100% L/C at sight
C. Paypal (small purchase)
D. Ali Trade assurance payment on line by the credit card
